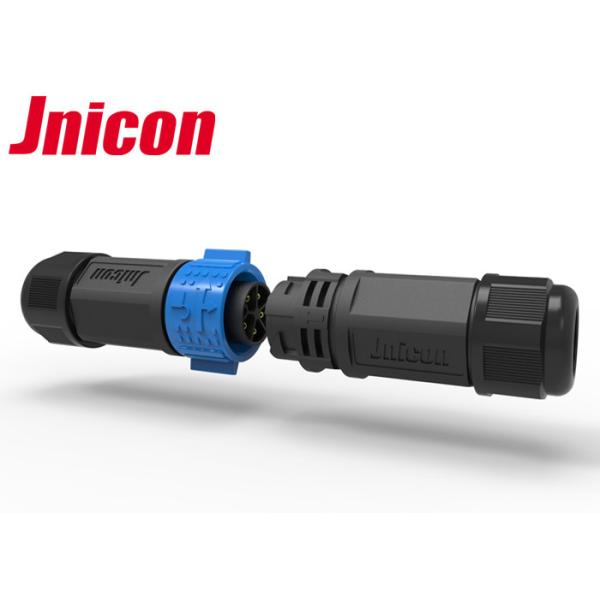

5 Pin Waterproof Circular Connectors , Power Cable M25 Circular Connector IP67

Name: 5 Pin Waterproof Circular Connectors Power Cable M25 Circular Connector IP67
Brand: Jnicon
Price: 1 USD

Pin : 5pin Power Cable Connectors

Operating Voltage : 500V

Gender : Male Plug Female Plug

Connection Way : Push locking

Assembly Wire : Soldering

Protection level : IP67

Material : PPA

Current Rating(A) : 30A max.

Brand Name : Jnicon

Model Number : M25

Certification : CE,TUV,UL,RoHS

Place of Origin : China

MOQ : 100 (10 Pairs of samples)

Price : Negotiable

Payment Terms : T/T,Paypal,L/C,Western Union

Supply Ability : 10000/days

Delivery Time : 3-6 working days

Packaging Details : High Quality export carton

Contact Now

5Pin IP67 Waterproof Circular Connectors , M25 Waterproof Power Cable Connectors

Description:

5Pin male plug female plug
TUV,UL,CUL,CE approval
Panl mount connectors: for PCB, soldering
circular outdoor power cable connectors
waterproof cable connector ip67
Cable assembly supported
industrial Electrical Plug
Any quantity is welcome

M25 waterproof round electrical connectors is the perfect solution to make your own waterproof connection cables easily. soldering is required and installation just takes a few minutes.

Operation Parameters
Voltage Rating	600VAC max
Current Rating	30A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max.Cable Cross Section Area	0.5mm2 ~ 6.0mm2

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Once assembled, the M25 waterproof ac power plug is easy to plug and play while keeping the elements and water out of splices and junctions. To disconnect, just unscrew the main body and pull apart the two ends.The M25 Waterproof conector has multiple waterproofing levels, consisting of o-rings, waterproof sealant, and flexible end seals designed to tighten and close when screwed together.

5 Pin Waterproof Circular Connectors , Power Cable M25 Circular Connector IP67

This M25 circular power connector has a waterproof rating of IP67. To assemble the M25 ip67 waterproof connector,only a Screwdriver is required to attach the two wires inside each main body. Once each side is connected, the wiring is fully protected from the elements.

If soldering version needed, its also avialble.

5 Pin Waterproof Circular Connectors , Power Cable M25 Circular Connector IP67
